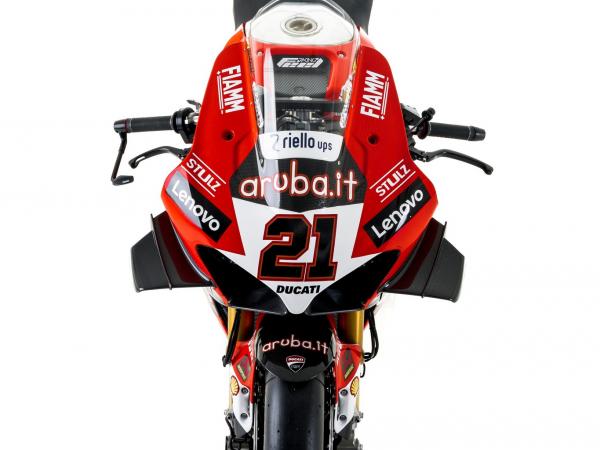

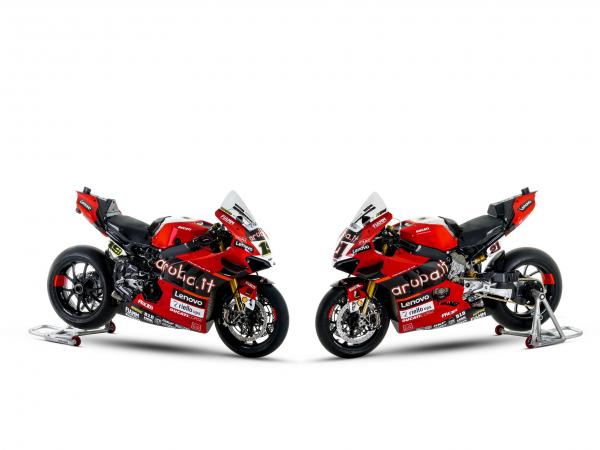

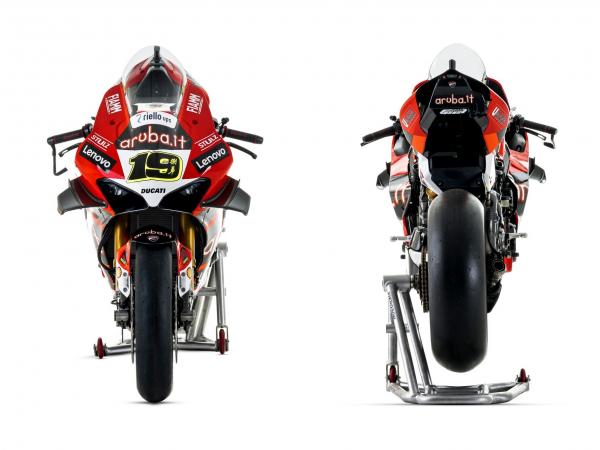

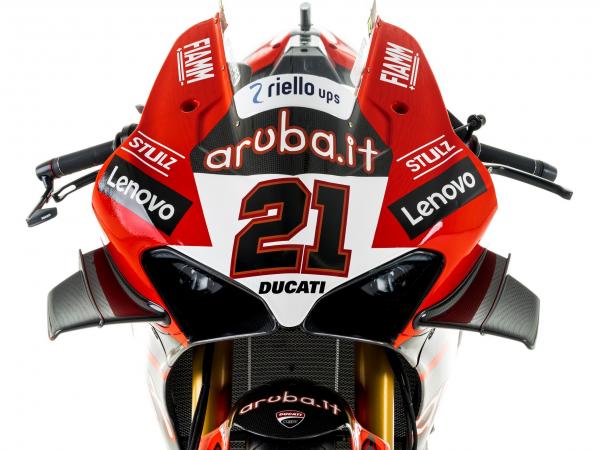

Ducati Panigale V4 R Superbike 2020

Source: mediahouse.ducati.com

Technical Specification:

TYPE	4-stroke, V4 90º
CAPACITY	998 cm³
BORE X STROKE	81 x 48.4 mm
TIMING SYSTEM	Desmodromic, 4 valves per cylinder
COOLING SYSTEM	Liquid cooled
ENGINE MANAGEMENT	Electronic Ignition-injection ECU Magneti Marelli ML
FUEL INJECTION	Electronic injection system, independent motorized elliptical throttle bodies
INJECTORS	Continental with aerodynamic butterfly valves, twin injectors for each cylinder
EXHAUST SYSTEM	Akrapovic titanium 4-2, with two titanium mufflers.
POWER	> 235 bhp at 16,000 rpm at the crankshaft.*
MAXIMUM SPEED	>315km/h
LUBRIFICATIN	Gear oil pump

CHASSIS

FRAME	Aluminium front frame
SUSPENSION	46 mm pressurized RVP2530 upside-down Öhlins fork, single-side aluminium swingarm, with Öhlins RSP40 shock absorber
WHEELS	Marchesini aluminium forged wheels 3.50×17’’ front and 6.00×17’’ rear

TRANSMISSION

GEARBOX	6 speed, straight cut gears
CLUTCH	STM dry multi-plate slipper clutch with hydraulic control

BRAKES

FRONT	Brembo radial P4X30-34 calipers, two Ø 336 mm floating discs
REAR	Brembo radial P2X34 caliper, one Ø 230 mm disc

TYRES

FRONT	Pirelli slick 120/70-R17
REAR	Pirelli slick 200/60-R17

OVERALL DIMENSIONS

LENGTH	2070mm
WIDTH	670mm
DRY WEIGHT	168 kg with water and oil
WHEELBASE	1450mm
FUEL TANK CAPACITY	23,9 litres
