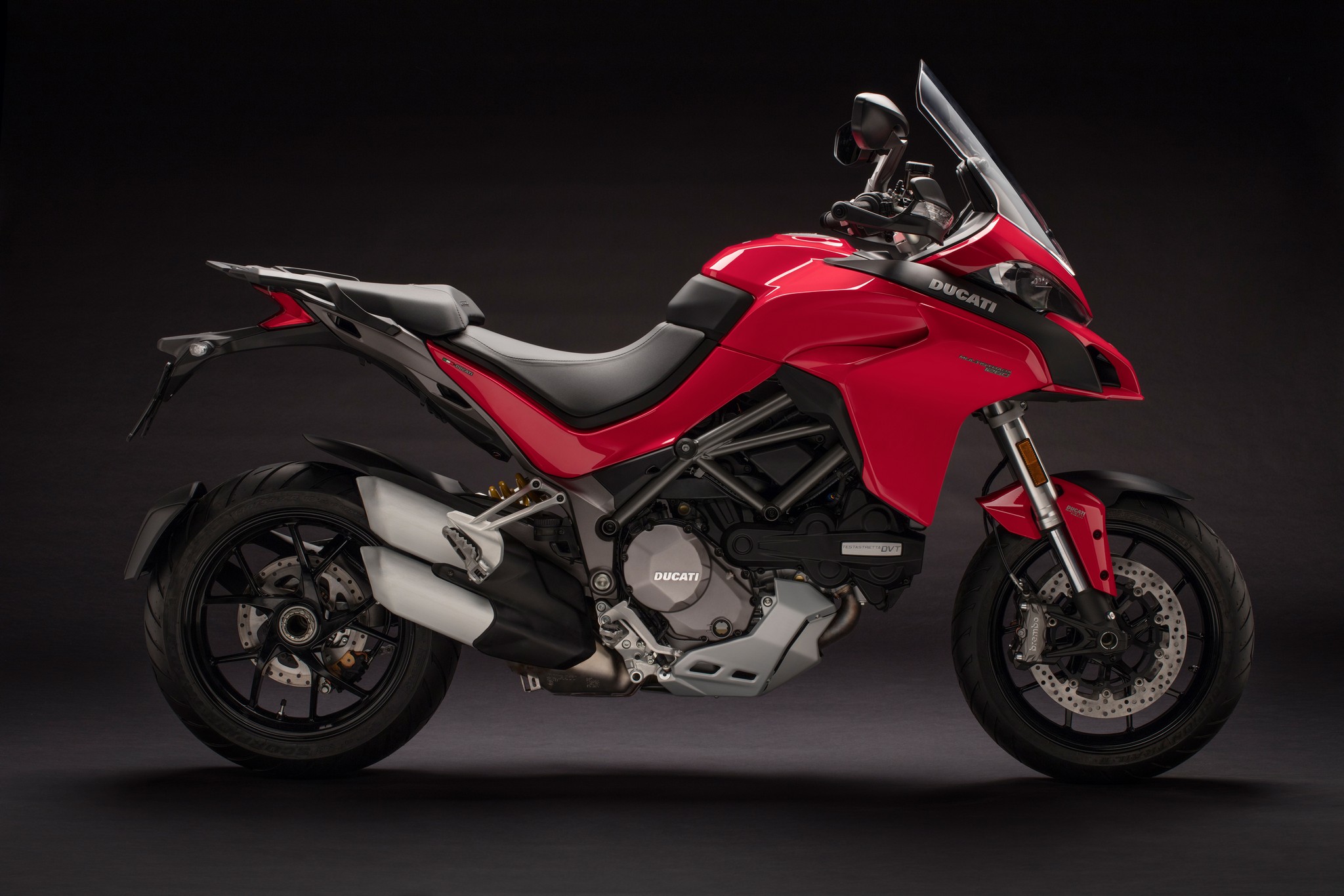

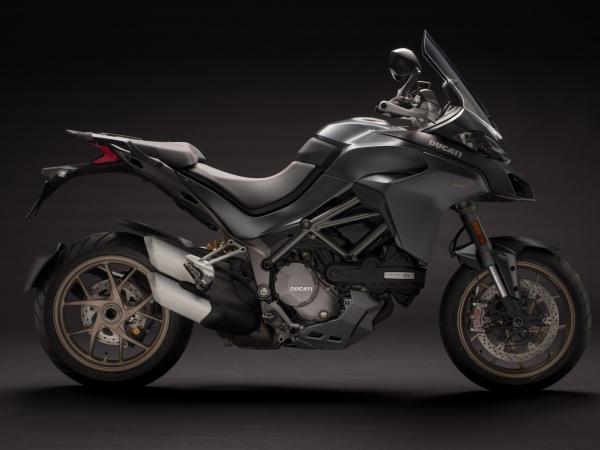

Ducati Multistrada 1260

Source: mediahouse.ducati.com

Technical data

Start of production	2018	Cylinder	V2 90°
Valves	4	Cooling	Liquid
Strokes	4	Displacement [ccm]	1262
Bore [mm]	106	Stroke [mm]	71
Compression ratio	13:1	Max. Power [kW/hp]	116/158
RPM max. power [min-1]	9500	Max. torque [Nm]	129
RPM max. torque [min-1]	7500	Fuelt treatment	Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
EURO-norm	4	Gears	6
Ratio gears	1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25	Front sprocket	15
Rear sprocket	40	Clutch	Wet clutch, hydraulic control
Wheelbase [mm]	1585	Rake [°]	25
Front suspension	48 mm fully adjustable usd forks	Front wheel travel [mm]	170
Front wheel	5-spoke Y-shape cast light alloy 3.50 x 17	Front tyre	120/70 R17 Pirelli Scorpion Trail II
Rear suspension	Fully adjustable Sachs monoshock unit. Remote spring preload adjustment. aluminum single-sided swingarm	Rear wheel travel [mm]	170
Rear wheel	5-spoke Y-shaped cast light alloy 6.00 x 17	Rear tyre	Pirelli Scorpion Trail II 190/55 R17
Front brake	2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment	Rear brake	265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Weight [kg]	209	Seat height [mm]	825-845
Instruments	TFT	Electric Features	VHC, Ridemodes, Powermodes, Cornering ABS-ABS, DTC, DWC, DQS, DMS

Start of production	2018
Cylinder	V2 90°
Valves	4
Cooling	Liquid
Strokes	4
Displacement [ccm]	1262
Bore [mm]	106
Stroke [mm]	71
Compression ratio	13:1
Max. Power [kW/hp]	116/158
RPM max. power [min-1]	9500
Max. torque [Nm]	129
RPM max. torque [min-1]	7500
Fuelt treatment	Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
EURO-norm	4
Gears	6
Ratio gears	1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Front sprocket	15
Rear sprocket	40
Clutch	Wet clutch, hydraulic control
Wheelbase [mm]	1585
Rake [°]	25
Front suspension	48 mm fully adjustable usd forks
Front wheel travel [mm]	170
Front wheel	5-spoke Y-shape cast light alloy 3.50 x 17
Front tyre	120/70 R17 Pirelli Scorpion Trail II
Rear suspension	Fully adjustable Sachs monoshock unit. Remote spring preload adjustment. aluminum single-sided swingarm
Rear wheel travel [mm]	170
Rear wheel	5-spoke Y-shaped cast light alloy 6.00 x 17
Rear tyre	Pirelli Scorpion Trail II 190/55 R17
Front brake	2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment
Rear brake	265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Weight [kg]	209
Seat height [mm]	825-845
Instruments	TFT
Electric Features	VHC, Ridemodes, Powermodes, Cornering ABS-ABS, DTC, DWC, DQS, DMS
