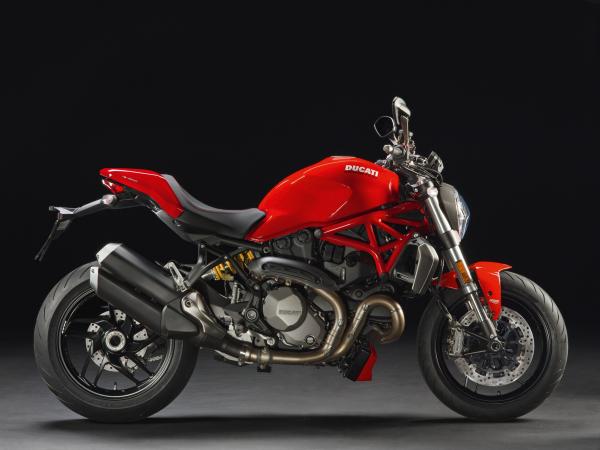

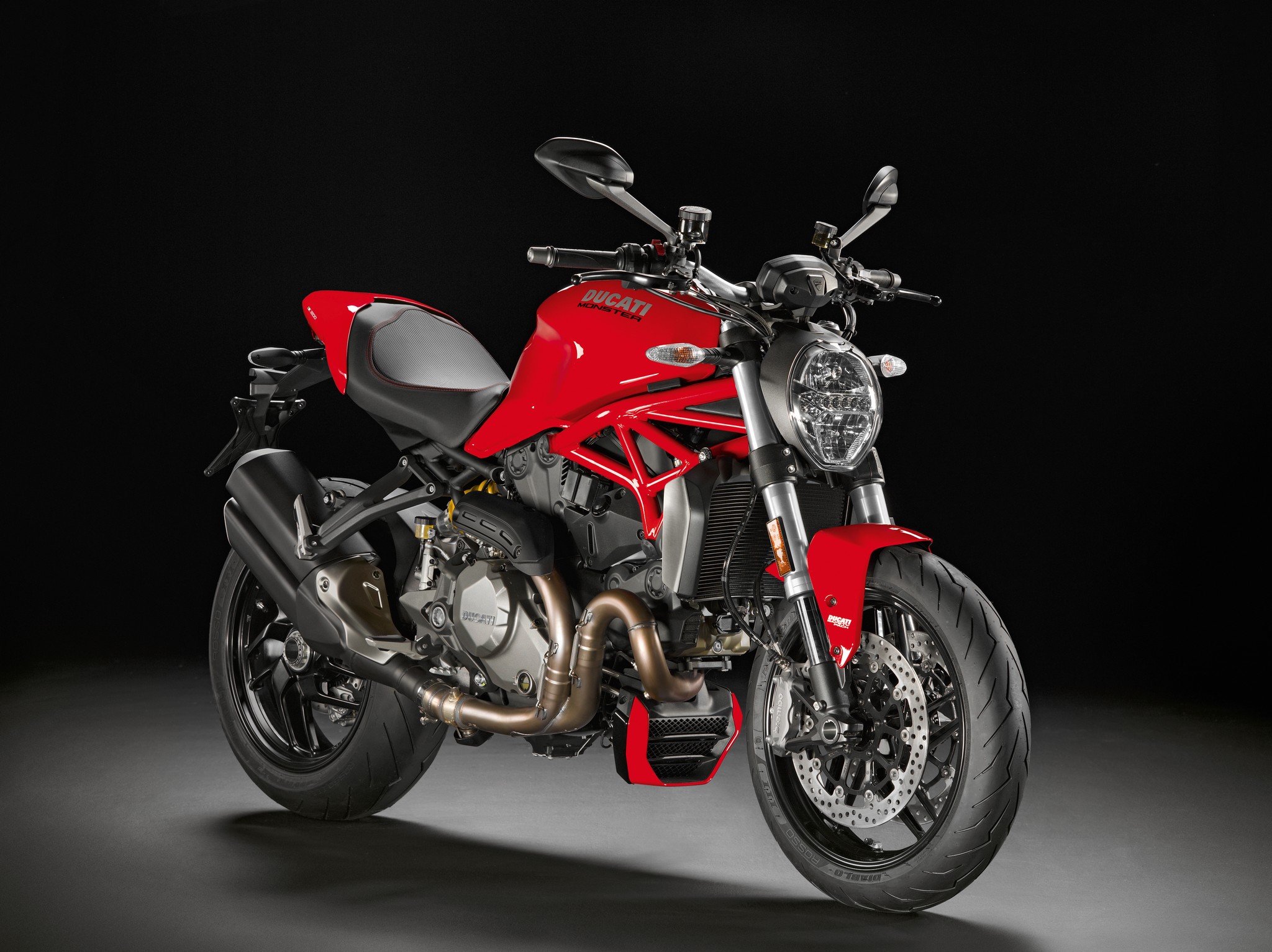

Ducati Monster 1200
Source: mediahouse.ducati.com Technical data
| Start of production | 2017 | Cylinder | 2 |
|---|---|---|---|
| Valves | 4 | Cooling | Liquid |
| Strokes | 4 | Displacement [ccm] | 1196 |
| Bore [mm] | 106 | Stroke [mm] | 67 |
| Compression ratio | 13:1 | Max. Power [kW/hp] | 110/150 |
| RPM max. power [min-1] | 9250 | Max. torque [Nm] | 126 |
| RPM max. torque [min-1] | 7750 | Fuelt treatment | electronic fuel injection, elliptical throttle body, RbW |
| EURO-norm | 4 | Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 | Front sprocket | 15 |
| Rear sprocket | 41 | Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1485 | Rake [°] | 23,3 |
| Front suspension | Kayba 43 mm USD-fork, fully adjustable | Front wheel travel [mm] | 130 |
| Front wheel | 10-spokes light alloy, 3.50 x 17 | Front tyre | I120/70 R17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, Vorspannung and Zugstufe einstellbar, Alu-single sided swingarm | Rear wheel travel [mm] | 149 |
| Rear wheel | 10-spokes light alloy, 6.00 x 17 | Rear tyre | 190/55 ZR17 Pirelli Diablo Rosso III |
| Front brake | 320 mm dual disc 4-piston-radial-caliper, Brembo Monobloc M4.32 with cornering-ABS | Rear brake | 245 mm disc 2-piston-caliper with cornering-ABS |
| Weight [kg] | 209 | Seat height [mm] | 795-820 |
| Colours | Ducati-red | Colours wheels | black |
| Instruments | Farb-TFT | Electric Features | Drivemodes, Powermodes, cornering-ABS, DTC, DWC, DQS, RbW, DDA, DRL |
| Start of production | 2017 |
|---|---|
| Cylinder | 2 |
| Valves | 4 |
| Cooling | Liquid |
| Strokes | 4 |
| Displacement [ccm] | 1196 |
| Bore [mm] | 106 |
| Stroke [mm] | 67 |
| Compression ratio | 13:1 |
| Max. Power [kW/hp] | 110/150 |
| RPM max. power [min-1] | 9250 |
| Max. torque [Nm] | 126 |
| RPM max. torque [min-1] | 7750 |
| Fuelt treatment | electronic fuel injection, elliptical throttle body, RbW |
| EURO-norm | 4 |
| Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 |
| Front sprocket | 15 |
| Rear sprocket | 41 |
| Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1485 |
| Rake [°] | 23,3 |
| Front suspension | Kayba 43 mm USD-fork, fully adjustable |
| Front wheel travel [mm] | 130 |
| Front wheel | 10-spokes light alloy, 3.50 x 17 |
| Front tyre | I120/70 R17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, Vorspannung and Zugstufe einstellbar, Alu-single sided swingarm |
| Rear wheel travel [mm] | 149 |
| Rear wheel | 10-spokes light alloy, 6.00 x 17 |
| Rear tyre | 190/55 ZR17 Pirelli Diablo Rosso III |
| Front brake | 320 mm dual disc 4-piston-radial-caliper, Brembo Monobloc M4.32 with cornering-ABS |
| Rear brake | 245 mm disc 2-piston-caliper with cornering-ABS |
| Weight [kg] | 209 |
| Seat height [mm] | 795-820 |
| Colours | Ducati-red |
| Colours wheels | black |
| Instruments | Farb-TFT |
| Electric Features | Drivemodes, Powermodes, cornering-ABS, DTC, DWC, DQS, RbW, DDA, DRL |
