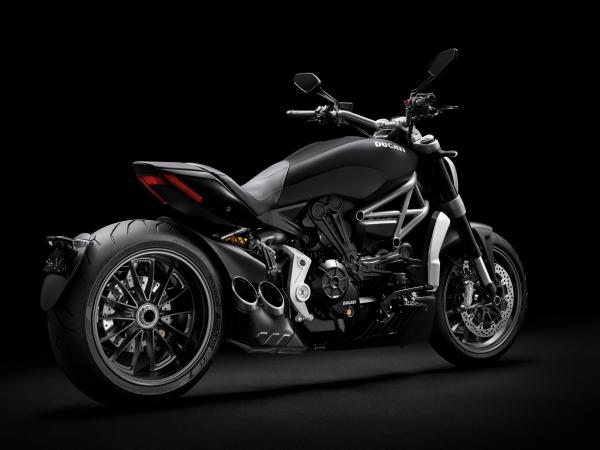

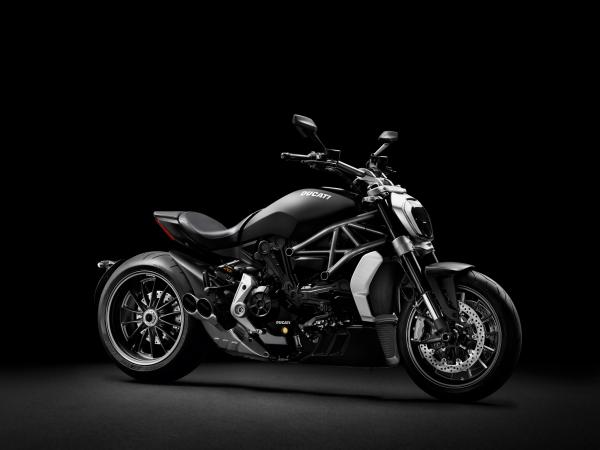

Ducati XDiavel
Source: mediahouse.ducati.com Technical data
| Start of production | 2016 | Cylinder | 2 |
|---|---|---|---|
| Valves | 4 | Cooling | Liquid |
| Strokes | 4 | Displacement [ccm] | 1262 |
| Bore [mm] | 106 | Stroke [mm] | 71 |
| Compression ratio | 13:1 | Max. Power [kW/hp] | 114/155 |
| RPM max. power [min-1] | 9500 | Max. torque [Nm] | 128 |
| RPM max. torque [min-1] | 5000 | Fuelt treatment | Bosch injection, RbW, elliptical throttle body |
| EURO-norm | 4 | Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 | Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1650 | Rake [°] | 30 |
| Front suspension | 50 mm USD-fork, einstellbar | Front wheel travel [mm] | 120 |
| Front wheel | light alloy 3,50 x 17 | Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | shock absorber, einstellbar | Rear wheel travel [mm] | 110 |
| Rear wheel | light alloy 8,00 x 17 | Rear tyre | 240/45 ZR17 Pirelli Diablo Rosso II |
| Front brake | 320 mm dual disc, 4-piston-radial-caliper, Brembo Monobloc M4-32 with cornering-ABS | Rear brake | 265 mm disc, 2-piston-caliper with cornering-ABS |
| Weight [kg] | 220 | Seat height [mm] | 755 |
| Colours | Dark Stealth | Colours wheels | Mineral-grey |
| Instruments | 3, TFT Farbdisplay | Electric Features | Drivemodes, cornering-ABS, DTC, DPL, RbW, Cruise control, Hands-free |
| Start of production | 2016 |
|---|---|
| Cylinder | 2 |
| Valves | 4 |
| Cooling | Liquid |
| Strokes | 4 |
| Displacement [ccm] | 1262 |
| Bore [mm] | 106 |
| Stroke [mm] | 71 |
| Compression ratio | 13:1 |
| Max. Power [kW/hp] | 114/155 |
| RPM max. power [min-1] | 9500 |
| Max. torque [Nm] | 128 |
| RPM max. torque [min-1] | 5000 |
| Fuelt treatment | Bosch injection, RbW, elliptical throttle body |
| EURO-norm | 4 |
| Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 |
| Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1650 |
| Rake [°] | 30 |
| Front suspension | 50 mm USD-fork, einstellbar |
| Front wheel travel [mm] | 120 |
| Front wheel | light alloy 3,50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | shock absorber, einstellbar |
| Rear wheel travel [mm] | 110 |
| Rear wheel | light alloy 8,00 x 17 |
| Rear tyre | 240/45 ZR17 Pirelli Diablo Rosso II |
| Front brake | 320 mm dual disc, 4-piston-radial-caliper, Brembo Monobloc M4-32 with cornering-ABS |
| Rear brake | 265 mm disc, 2-piston-caliper with cornering-ABS |
| Weight [kg] | 220 |
| Seat height [mm] | 755 |
| Colours | Dark Stealth |
| Colours wheels | Mineral-grey |
| Instruments | 3, TFT Farbdisplay |
| Electric Features | Drivemodes, cornering-ABS, DTC, DPL, RbW, Cruise control, Hands-free |
