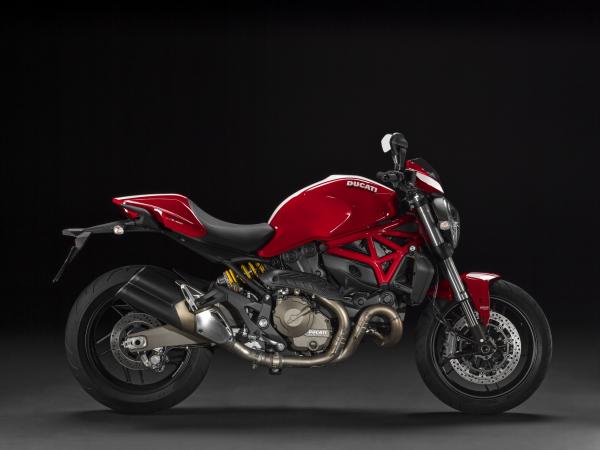

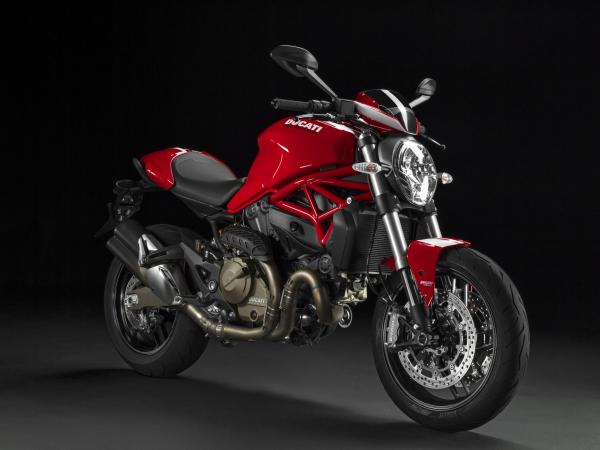

Ducati Monster 821 Stripe
Source: mediahouse.ducati.com Technical data
| Start of production | 2015 | Cylinder | 2 |
|---|---|---|---|
| Valves | 4 | Cooling | Liquid |
| Strokes | 4 | Displacement [ccm] | 821 |
| Bore [mm] | 88 | Stroke [mm] | 67 |
| Compression ratio | 12.8:1 | Max. Power [kW/hp] | 82/112 |
| RPM max. power [min-1] | 9250 | Max. torque [Nm] | 89 |
| RPM max. torque [min-1] | 7750 | Fuelt treatment | Continental electronic fuel injection, Mikuni 53 mm throttle body, Ride-By-Wire |
| EURO-norm | 3 | Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 | Front sprocket | 15 |
| Rear sprocket | 46 | Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1480 | Rake [°] | 24,3 |
| Steering lock [°] left/right | 30 | Front suspension | 43 mm USD-fork |
| Front wheel travel [mm] | 130 | Front wheel | 10-spokes light alloy, 3.50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II | Rear suspension | Sachs, aluminum swingarm |
| Rear wheel travel [mm] | 140 | Rear wheel | 10-spokes light alloy, 5.50 x 17 |
| Rear tyre | 180/70 ZR 17 Pirelli Diablo Rosso II | Front brake | 320 dual disc, radial-caliper, Brembo Monobloc M4-32 with ABS |
| Rear brake | 245 mm disc, 2-piston caliper with ABS | Weight [kg] | 179 |
| Seat height [mm] | 785-810 | Length [mm] | 2154 |
| Colours | red | Colours wheels | black |
| Instruments | LCD | Electric Features | Farmodi, DTC, Ride-by-Wire |
| Start of production | 2015 |
|---|---|
| Cylinder | 2 |
| Valves | 4 |
| Cooling | Liquid |
| Strokes | 4 |
| Displacement [ccm] | 821 |
| Bore [mm] | 88 |
| Stroke [mm] | 67 |
| Compression ratio | 12.8:1 |
| Max. Power [kW/hp] | 82/112 |
| RPM max. power [min-1] | 9250 |
| Max. torque [Nm] | 89 |
| RPM max. torque [min-1] | 7750 |
| Fuelt treatment | Continental electronic fuel injection, Mikuni 53 mm throttle body, Ride-By-Wire |
| EURO-norm | 3 |
| Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24 |
| Front sprocket | 15 |
| Rear sprocket | 46 |
| Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1480 |
| Rake [°] | 24,3 |
| Steering lock [°] left/right | 30 |
| Front suspension | 43 mm USD-fork |
| Front wheel travel [mm] | 130 |
| Front wheel | 10-spokes light alloy, 3.50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, aluminum swingarm |
| Rear wheel travel [mm] | 140 |
| Rear wheel | 10-spokes light alloy, 5.50 x 17 |
| Rear tyre | 180/70 ZR 17 Pirelli Diablo Rosso II |
| Front brake | 320 dual disc, radial-caliper, Brembo Monobloc M4-32 with ABS |
| Rear brake | 245 mm disc, 2-piston caliper with ABS |
| Weight [kg] | 179 |
| Seat height [mm] | 785-810 |
| Length [mm] | 2154 |
| Colours | red |
| Colours wheels | black |
| Instruments | LCD |
| Electric Features | Farmodi, DTC, Ride-by-Wire |
