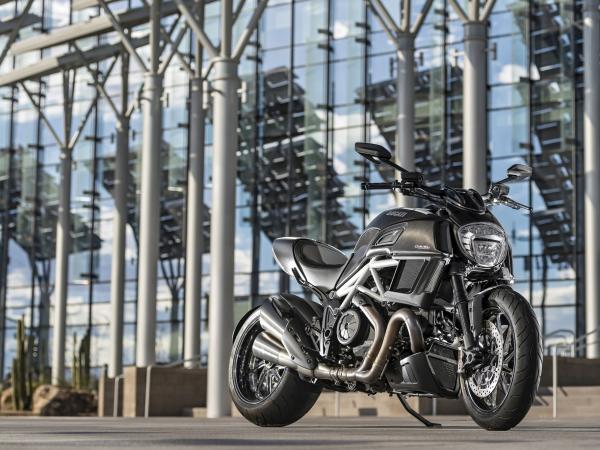

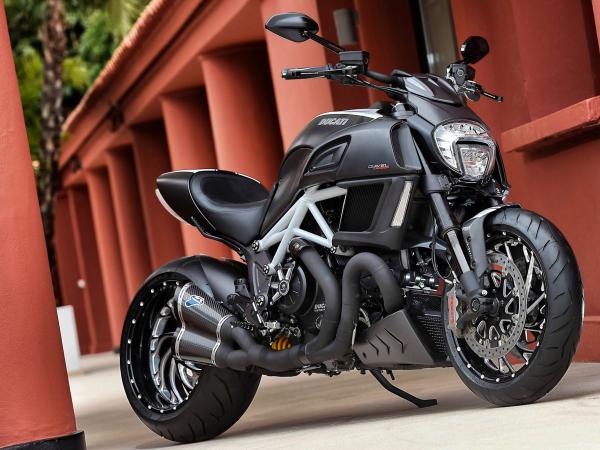

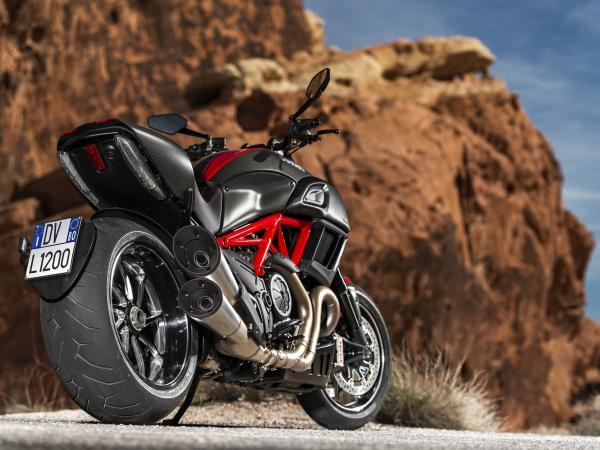

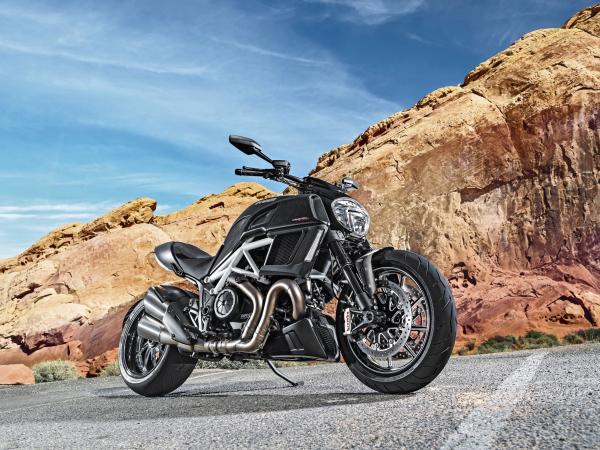

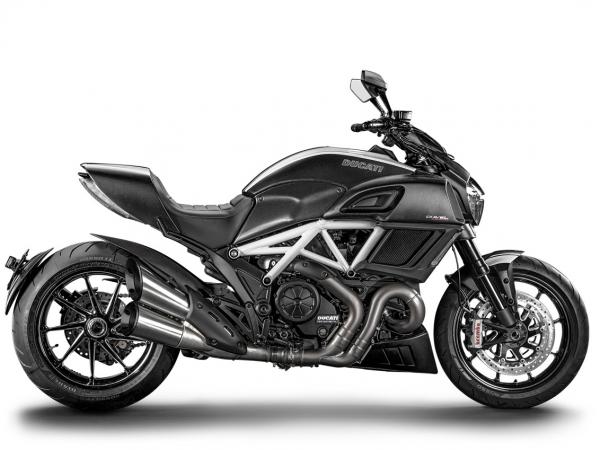

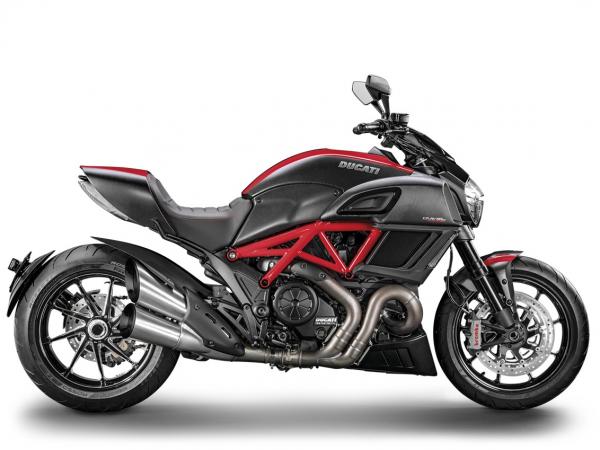

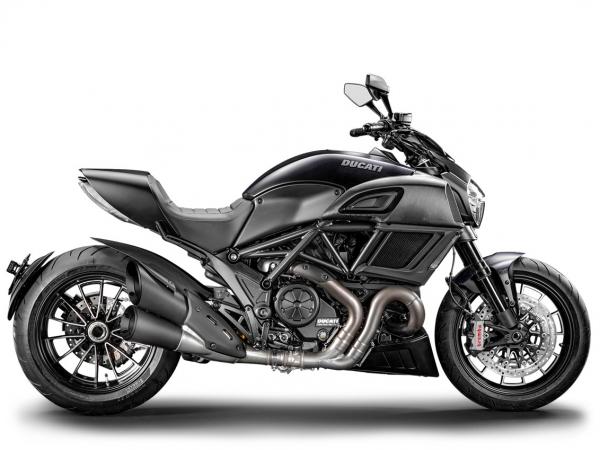

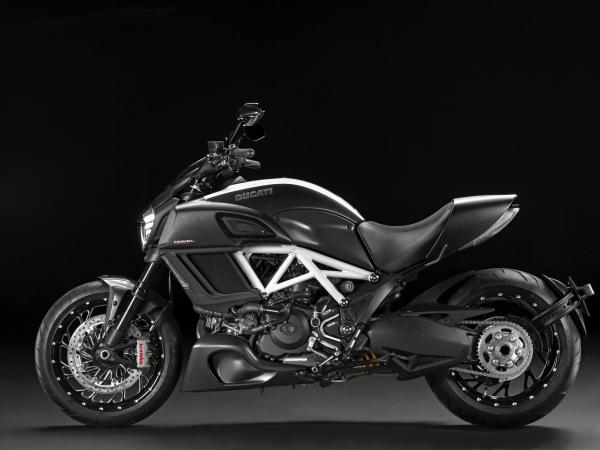

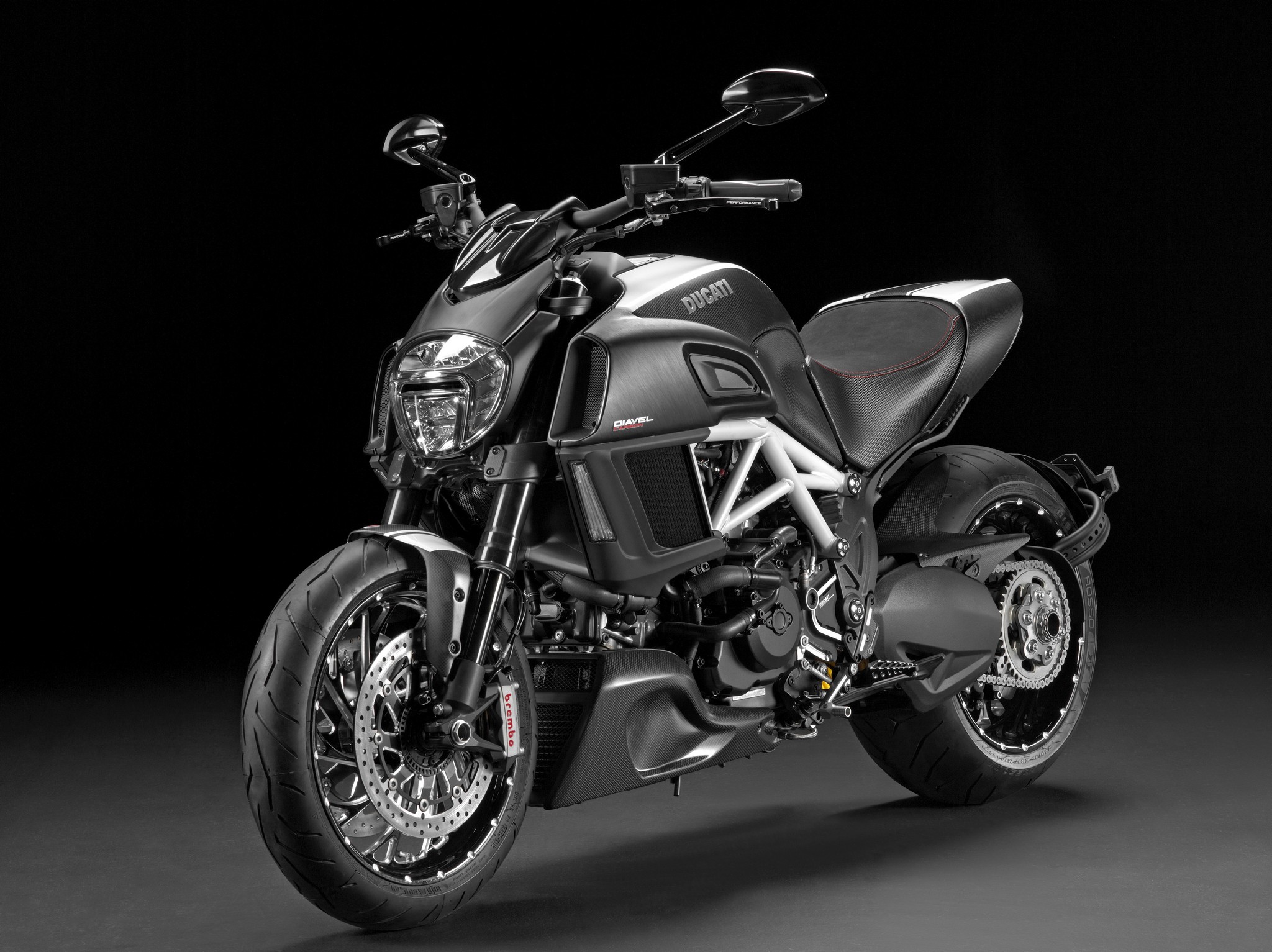

Ducati Diavel Carbon
Source: mediahouse.ducati.com Technical data
| Start of production | 2015 | Cylinder | 2 |
|---|---|---|---|
| Valves | 4 | Cooling | Liquid |
| Strokes | 4 | Displacement [ccm] | 1198 |
| Bore [mm] | 106 | Stroke [mm] | 67 |
| Compression ratio | 12.5:1 | Max. Power [kW/hp] | 119/162 |
| RPM max. power [min-1] | 9250 | Max. torque [Nm] | 130 |
| RPM max. torque [min-1] | 8000 | Fuelt treatment | Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW |
| EURO-norm | 3 | Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 | Front sprocket | 15 |
| Rear sprocket | 43 | Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1590 | Rake [°] | 28 |
| Steering lock [°] left/right | 35 | Front suspension | Marzocchi 50 mm USD-fork, fully adjustable, DLC beschichtet |
| Front wheel travel [mm] | 120 | Front wheel | 9-spokes Marchesini light alloy, forged, 3.50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II | Rear suspension | Sachs, fully adjustable, Aluminum-single sided swingarm |
| Rear wheel travel [mm] | 120 | Rear wheel | 9-spokes Marchesini light alloy, forged, 8.00 x 17 |
| Rear tyre | 240/45 ZR17 Pirelli Diablo Rosso II | Front brake | 320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo Monobloc |
| Rear brake | 265 mm disc, 2-piston caliper schwimmend with ABS | Weight [kg] | 205 |
| Seat height [mm] | 770 | Length [mm] | 2257 |
| Colours | red, Carbon-Matt | Colours wheels | black |
| Instruments | LCD + TFT | Electric Features | DTC, Hands-Free, Drivemodes |
| Start of production | 2015 |
|---|---|
| Cylinder | 2 |
| Valves | 4 |
| Cooling | Liquid |
| Strokes | 4 |
| Displacement [ccm] | 1198 |
| Bore [mm] | 106 |
| Stroke [mm] | 67 |
| Compression ratio | 12.5:1 |
| Max. Power [kW/hp] | 119/162 |
| RPM max. power [min-1] | 9250 |
| Max. torque [Nm] | 130 |
| RPM max. torque [min-1] | 8000 |
| Fuelt treatment | Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW |
| EURO-norm | 3 |
| Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 |
| Front sprocket | 15 |
| Rear sprocket | 43 |
| Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1590 |
| Rake [°] | 28 |
| Steering lock [°] left/right | 35 |
| Front suspension | Marzocchi 50 mm USD-fork, fully adjustable, DLC beschichtet |
| Front wheel travel [mm] | 120 |
| Front wheel | 9-spokes Marchesini light alloy, forged, 3.50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, fully adjustable, Aluminum-single sided swingarm |
| Rear wheel travel [mm] | 120 |
| Rear wheel | 9-spokes Marchesini light alloy, forged, 8.00 x 17 |
| Rear tyre | 240/45 ZR17 Pirelli Diablo Rosso II |
| Front brake | 320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo Monobloc |
| Rear brake | 265 mm disc, 2-piston caliper schwimmend with ABS |
| Weight [kg] | 205 |
| Seat height [mm] | 770 |
| Length [mm] | 2257 |
| Colours | red, Carbon-Matt |
| Colours wheels | black |
| Instruments | LCD + TFT |
| Electric Features | DTC, Hands-Free, Drivemodes |
