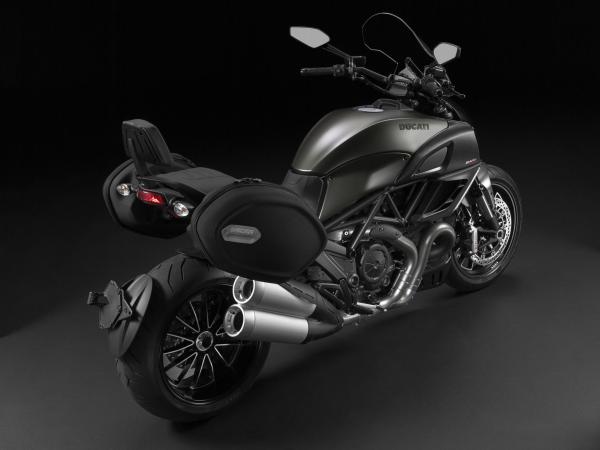

Ducati Diavel Strada
Source: mediahouse.ducati.com Technical data
| Start of production | 2013 | End of production | 2015 |
|---|---|---|---|
| Cylinder | 2 | Valves | 4 |
| Cooling | Liquid | Strokes | 4 |
| Displacement [ccm] | 1198 | Bore [mm] | 106 |
| Stroke [mm] | 67 | Compression ratio | 11.5:1 |
| Max. Power [kW/hp] | 119/162 | RPM max. power [min-1] | 9500 |
| Max. torque [Nm] | 127 | RPM max. torque [min-1] | 8000 |
| Fuelt treatment | Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW | EURO-norm | 3 |
| Gears | 6 | Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 |
| Front sprocket | 15 | Rear sprocket | 43 |
| Clutch | Wet clutch, hydraulic control | Wheelbase [mm] | 1590 |
| Rake [°] | 28 | Steering lock [°] left/right | 35 |
| Front suspension | Marzocchi 50 mm USD-fork, fully adjustable | Front wheel travel [mm] | 120 |
| Front wheel | 14-spokes light alloy, 3.50 x 17 | Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, fully adjustable, Aluminum-single sided swingarm | Rear wheel travel [mm] | 120 |
| Rear wheel | 10-spokes light alloy, 8.00 x 17 | Rear tyre | 240/15 ZR17 Pirelli Diablo Rosso II |
| Front brake | 320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo | Rear brake | 265 mm disc, 2-piston caliper schwimmend with ABS |
| Weight [kg] | 216 | Seat height [mm] | 770 |
| Length [mm] | 2257 | Instruments | LCD + TFT |
| Electric Features | DTC, Hands-Free, Drivemodes |
| Start of production | 2013 |
|---|---|
| End of production | 2015 |
| Cylinder | 2 |
| Valves | 4 |
| Cooling | Liquid |
| Strokes | 4 |
| Displacement [ccm] | 1198 |
| Bore [mm] | 106 |
| Stroke [mm] | 67 |
| Compression ratio | 11.5:1 |
| Max. Power [kW/hp] | 119/162 |
| RPM max. power [min-1] | 9500 |
| Max. torque [Nm] | 127 |
| RPM max. torque [min-1] | 8000 |
| Fuelt treatment | Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW |
| EURO-norm | 3 |
| Gears | 6 |
| Ratio gears | 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 |
| Front sprocket | 15 |
| Rear sprocket | 43 |
| Clutch | Wet clutch, hydraulic control |
| Wheelbase [mm] | 1590 |
| Rake [°] | 28 |
| Steering lock [°] left/right | 35 |
| Front suspension | Marzocchi 50 mm USD-fork, fully adjustable |
| Front wheel travel [mm] | 120 |
| Front wheel | 14-spokes light alloy, 3.50 x 17 |
| Front tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear suspension | Sachs, fully adjustable, Aluminum-single sided swingarm |
| Rear wheel travel [mm] | 120 |
| Rear wheel | 10-spokes light alloy, 8.00 x 17 |
| Rear tyre | 240/15 ZR17 Pirelli Diablo Rosso II |
| Front brake | 320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo |
| Rear brake | 265 mm disc, 2-piston caliper schwimmend with ABS |
| Weight [kg] | 216 |
| Seat height [mm] | 770 |
| Length [mm] | 2257 |
| Instruments | LCD + TFT |
| Electric Features | DTC, Hands-Free, Drivemodes |
