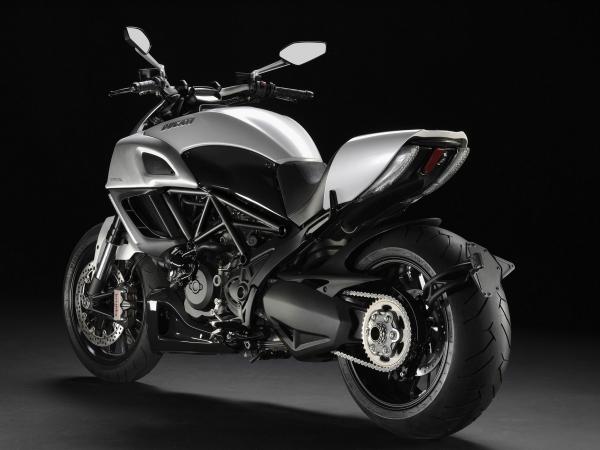

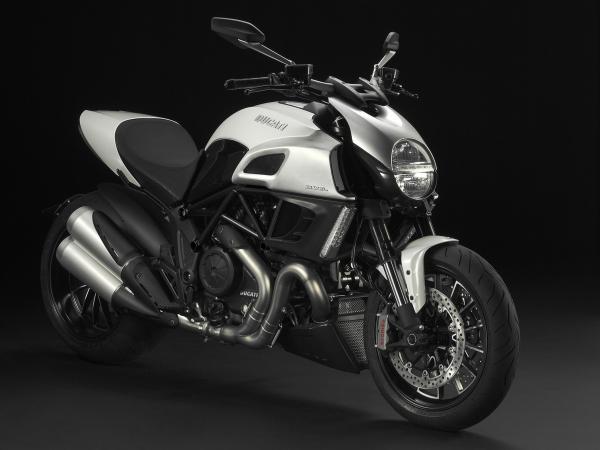

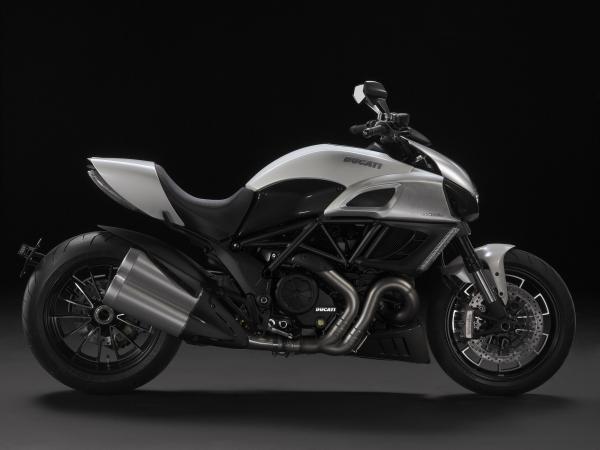

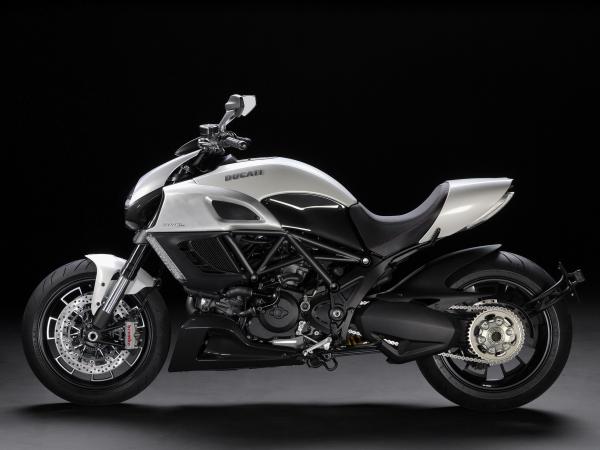

Ducati Diavel

Source: mediahouse.ducati.com

Technical data

Start of production	2011	End of production	2015
Cylinder	2	Valves	4
Cooling	Liquid	Strokes	4
Displacement [ccm]	1198	Bore [mm]	106
Stroke [mm]	67	Compression ratio	11.5:1
Max. Power [kW/hp]	119/162	RPM max. power [min-1]	9500
Max. torque [Nm]	127	RPM max. torque [min-1]	8000
Fuelt treatment	Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW	EURO-norm	3
Gears	6	Ratio gears	1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Front sprocket	15	Rear sprocket	43
Clutch	Wet clutch, hydraulic control	Wheelbase [mm]	1590
Rake [°]	28	Steering lock [°] left/right	35
Front suspension	Marzocchi 50 mm USD-fork, fully adjustable	Front wheel travel [mm]	120
Front wheel	14-spokes light alloy, 3.50 x 17	Front tyre	120/70 ZR17 Pirelli Diablo Rosso II
Rear suspension	Sachs, fully adjustable, Aluminum-single sided swingarm	Rear wheel travel [mm]	120
Rear wheel	14-spokes light alloy, 8.00 x 17	Rear tyre	240/45 ZR17 Pirelli Diablo Rosso II
Front brake	320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo	Rear brake	265 mm disc, 2-piston caliper schwimmend with ABS
Weight [kg]	210	Seat height [mm]	770
Length [mm]	2257	Colours	red
Colours wheels	black	Instruments	LCD + TFT
Electric Features	DTC, Hands-Free, Drivemodes

Start of production	2011
End of production	2015
Cylinder	2
Valves	4
Cooling	Liquid
Strokes	4
Displacement [ccm]	1198
Bore [mm]	106
Stroke [mm]	67
Compression ratio	11.5:1
Max. Power [kW/hp]	119/162
RPM max. power [min-1]	9500
Max. torque [Nm]	127
RPM max. torque [min-1]	8000
Fuelt treatment	Mitsubishi electronic fuel injection, Mikuni elliptical throttle body with RbW
EURO-norm	3
Gears	6
Ratio gears	1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Front sprocket	15
Rear sprocket	43
Clutch	Wet clutch, hydraulic control
Wheelbase [mm]	1590
Rake [°]	28
Steering lock [°] left/right	35
Front suspension	Marzocchi 50 mm USD-fork, fully adjustable
Front wheel travel [mm]	120
Front wheel	14-spokes light alloy, 3.50 x 17
Front tyre	120/70 ZR17 Pirelli Diablo Rosso II
Rear suspension	Sachs, fully adjustable, Aluminum-single sided swingarm
Rear wheel travel [mm]	120
Rear wheel	14-spokes light alloy, 8.00 x 17
Rear tyre	240/45 ZR17 Pirelli Diablo Rosso II
Front brake	320 mm dual disc, 4-piston-radial-caliper with ABS, Brembo
Rear brake	265 mm disc, 2-piston caliper schwimmend with ABS
Weight [kg]	210
Seat height [mm]	770
Length [mm]	2257
Colours	red
Colours wheels	black
Instruments	LCD + TFT
Electric Features	DTC, Hands-Free, Drivemodes
