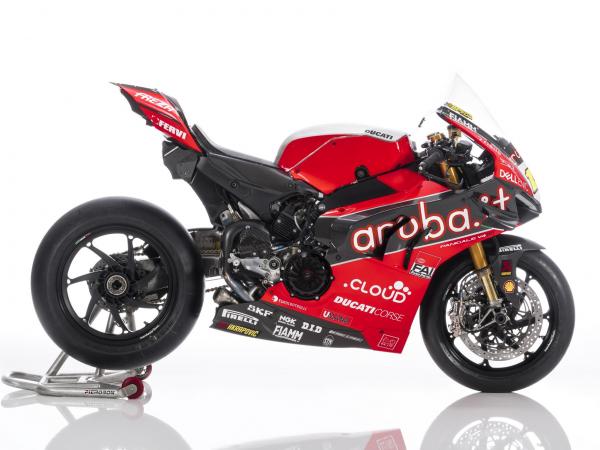

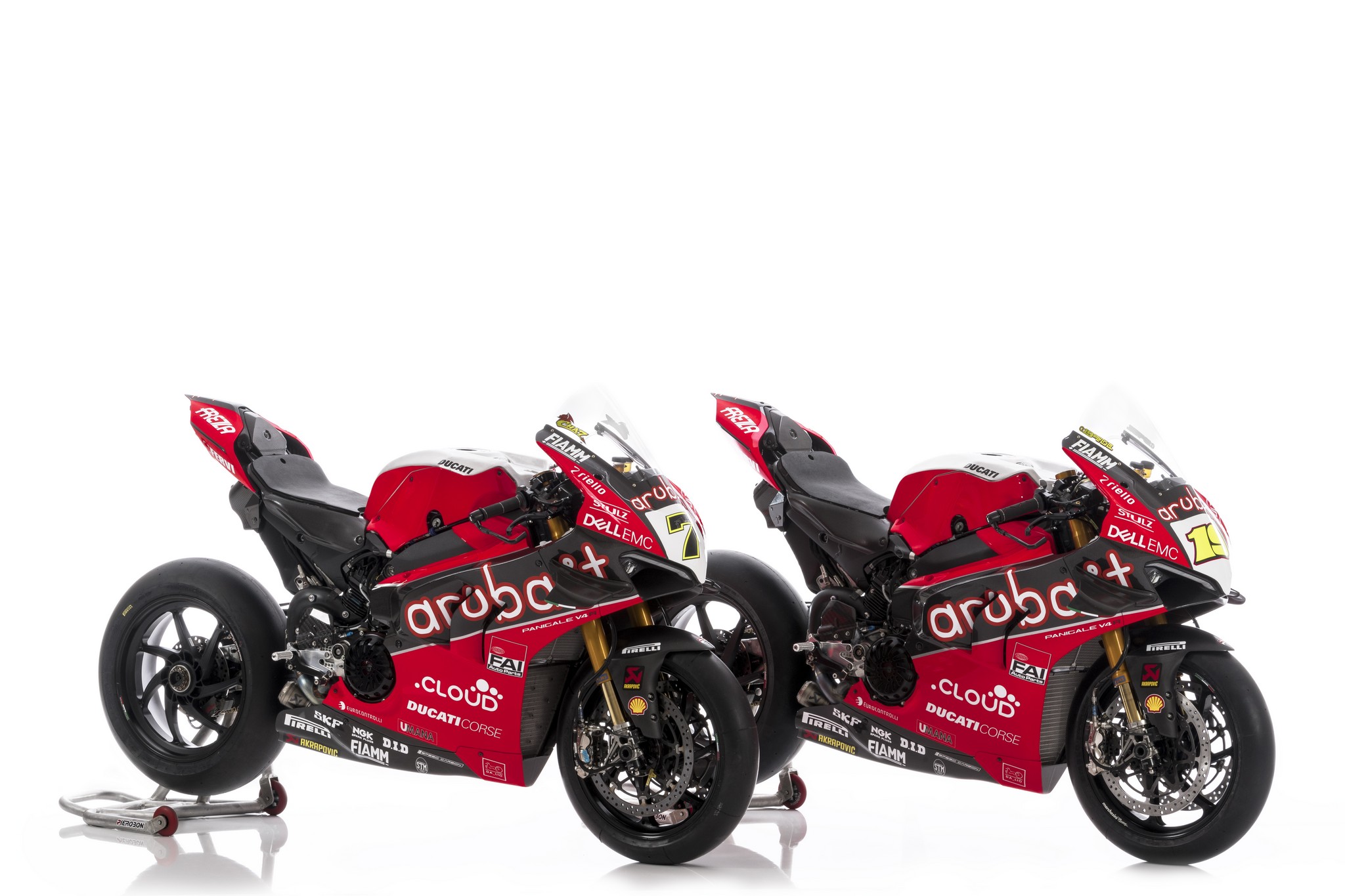

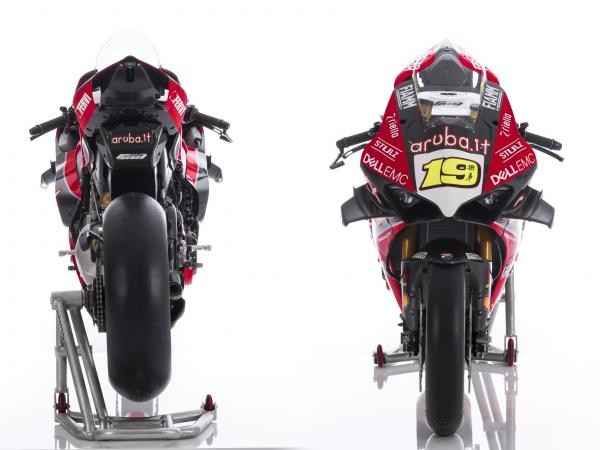

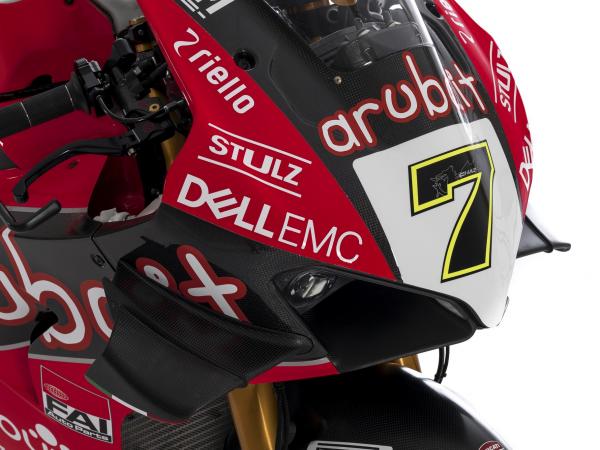

Ducati Panigale V4 R Superbike 2019

Responsive image Source: Ducati-Press

Technical Specification:

TYPE 4-stroke, V4 90º
CAPACITY 998 cm³
BORE X STROKE 81 x 48.4 mm
TIMING SYSTEM Desmodromic, 4 valves per cylinder
COOLING SYSTEM Liquid cooled
ENGINE MANAGEMENT Electronic Ignition-injection ECU Magneti Marelli ML
FUEL INJECTION Electronic injection system, independent motorized elliptical throttle bodies
INJECTORS Continental with aerodynamic butterfly valves, twin injectors for each cylinder
EXHAUST SYSTEM Akrapovic titanium 4-2, with two titanium mufflers.
POWER > 235 bhp at 16,000 rpm at the crankshaft.*
MAXIMUM SPEED >315km/h
LUBRIFICATIN Gear oil pump

CHASSIS

FRAME Aluminium front frame
SUSPENSION 46 mm pressurized RVP2530 upside-down Öhlins fork, single-side aluminium swingarm, with Öhlins RSP40 shock absorber
WHEELS Marchesini aluminium forged wheels 3.50×17’’ front and 6.00×17’’ rear

TRANSMISSION

GEARBOX 6 speed, straight cut gears
CLUTCH STM dry multi-plate slipper clutch with hydraulic control

BRAKES

FRONT Brembo radial P4X30-34 calipers, two Ø 336 mm floating discs
REAR Brembo radial P2X34 caliper, one Ø 230 mm disc

TYRES

FRONT Pirelli slick 120/70-R17
REAR Pirelli slick 200/60-R17

OVERALL DIMENSIONS

LENGTH 2070mm
WIDTH 670mm
DRY WEIGHT 168 kg with water and oil
WHEELBASE 1450mm
FUEL TANK CAPACITY 23,9 litres
