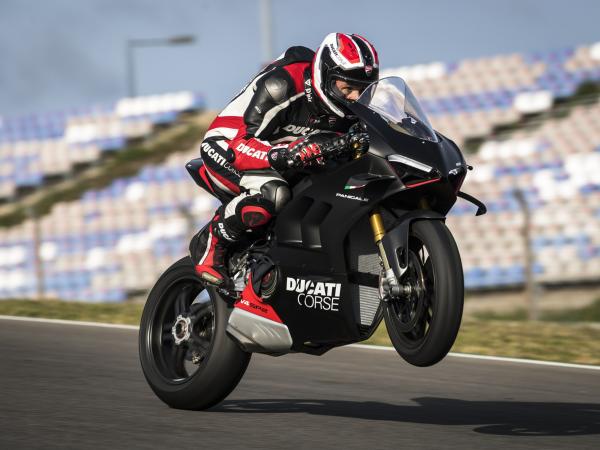

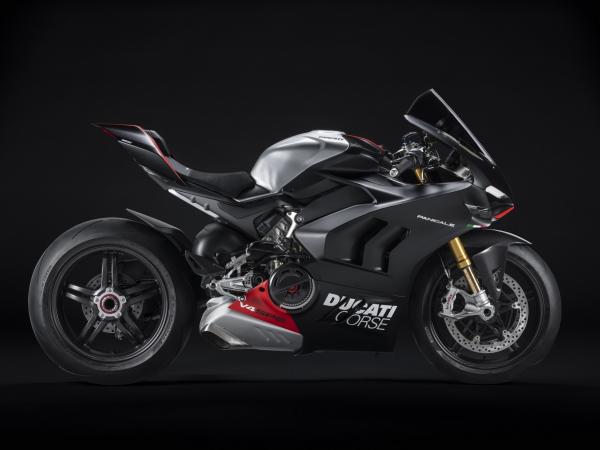

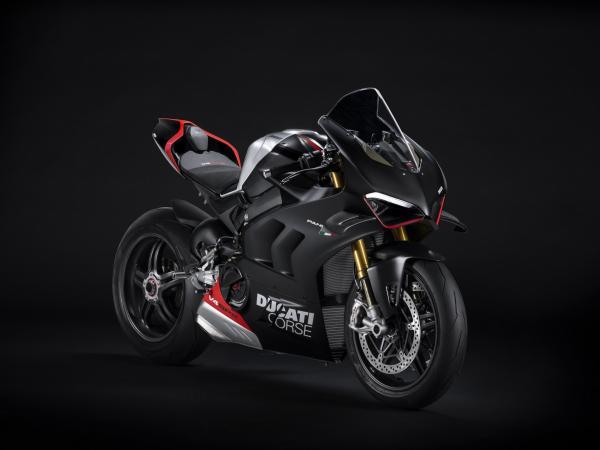

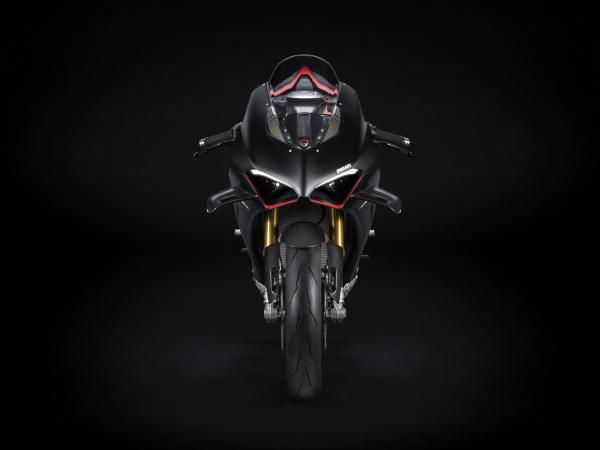

Ducati Panigale V4 SP 2

Responsive image Source: Ducati-Mediahouse

Technical data

Start of production2022 CylinderV4 90°
Valves4 CoolingLiquid
Strokes4 Displacement [ccm]1103
Bore [mm]81 Stroke [mm]53
Compression ratio14:1 Max. Power [kW/hp]158/215
RPM max. power [min-1]13000 Max. torque [Nm]123
RPM max. torque [min-1]9500 Fuelt treatmentElectronic fuel injection system. Twin injectors per cylinder. Full ride-bywire elliptical throttle bodies. Variable length intake system
EURO-norm5 Gears6
Ratio gears1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22 Front sprocket16
Rear sprocket41 ClutchHydraulically controlled slipper dry clutch. Self bleeding master cylinder
Wheelbase [mm]1469 Rake [°]24,5
Front suspensionÖhlins NPX25/30 pressurized 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 eventbased mode Front wheel travel [mm]125
Front wheel5-split spoke carbon fiber 3.50 x 17 Front tyrePirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspensionFully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm Rear wheel travel [mm]130
Rear wheel5-split spoke carbon fiber 6.00 x 17 Rear tyrePirelli Diablo Supercorsa SP 200/60 ZR17
Front brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® R 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding Brembo MCS 19.21 master cylinder. Rear brake245 mm disc, 2-piston calliper with Cornering ABS EVO
Weight [kg]173 Seat height [mm]850
ColoursWinter Test InstrumentsColour-TFT
Electric FeaturesRiding-modes, Power-modes, Cornering-ABS, DTC, DWC, DSC, EBC, DPL, DQS
Start of production2022
CylinderV4 90°
Valves4
CoolingLiquid
Strokes4
Displacement [ccm]1103
Bore [mm]81
Stroke [mm]53
Compression ratio14:1
Max. Power [kW/hp]158/215
RPM max. power [min-1]13000
Max. torque [Nm]123
RPM max. torque [min-1]9500
Fuelt treatmentElectronic fuel injection system. Twin injectors per cylinder. Full ride-bywire elliptical throttle bodies. Variable length intake system
EURO-norm5
Gears6
Ratio gears1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22
Front sprocket16
Rear sprocket41
ClutchHydraulically controlled slipper dry clutch. Self bleeding master cylinder
Wheelbase [mm]1469
Rake [°]24,5
Front suspensionÖhlins NPX25/30 pressurized 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 eventbased mode
Front wheel travel [mm]125
Front wheel5-split spoke carbon fiber 3.50 x 17
Front tyrePirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspensionFully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm
Rear wheel travel [mm]130
Rear wheel5-split spoke carbon fiber 6.00 x 17
Rear tyrePirelli Diablo Supercorsa SP 200/60 ZR17
Front brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® R 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding Brembo MCS 19.21 master cylinder.
Rear brake245 mm disc, 2-piston calliper with Cornering ABS EVO
Weight [kg]173
Seat height [mm]850
ColoursWinter Test
InstrumentsColour-TFT
Electric FeaturesRiding-modes, Power-modes, Cornering-ABS, DTC, DWC, DSC, EBC, DPL, DQS
