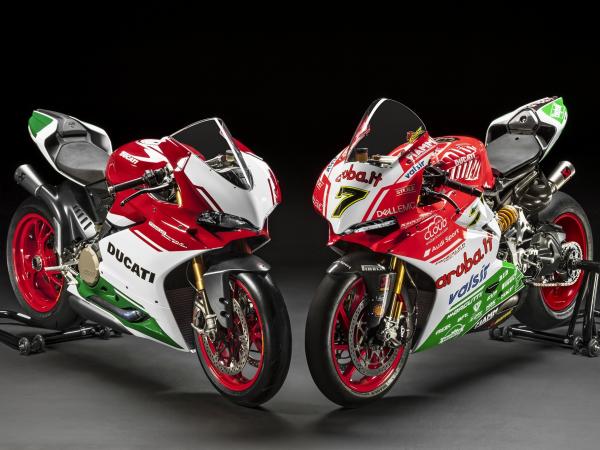

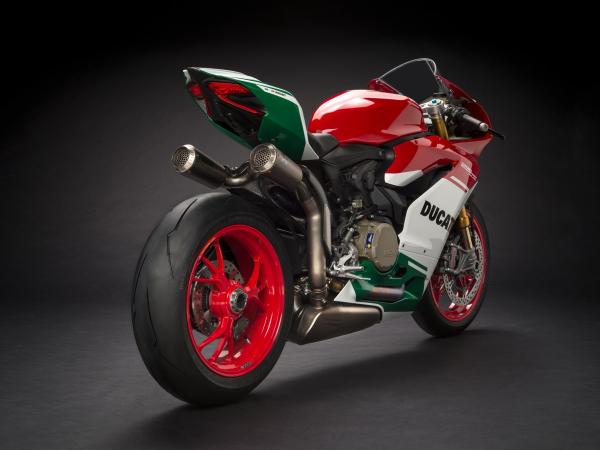

Ducati 1299 Panigale R Final Edition

Responsive image Source: Ducati-Press

Technical data

Start of production2017 Cylinder2
Valves4 Coolingliquid
Strokes4 Displacement [ccm]1285
Bore [mm]116 Stroke [mm]60
Compression ratio13:1 Max. Power [kW/hp]154/209
RPM max. power [min-1]11000 Max. torque [Nm]142
RPM max. torque [min-1]9000 Fuelt treatmentMitsubishi electronic fuel injection, Twin-Injection, RbW, elliptical throttle body
EURO-norm4 Gears6
Ratio gears1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24 Front sprocket15
Rear sprocket39 ClutchWet clutch, hydraulic control
Wheelbase [mm]1443 Rake [°]24
Front suspensionÖhlins NIX30 43 mm USD-fork, elektronisch einstellbar, TiN Front wheel travel [mm]120
Front wheel3-W-spokes light alloy, forged, 3.50 x 17 Front tyre120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspensionÖhlins TTX36, elektronisch einstellbar Rear wheel travel [mm]130
Rear wheel3-W-spokes light alloy, forged, 6.00 x 17 Rear tyre200/55 ZR17 Pirelli Diablo Supercorsa SP
Front brake330 mm dual disc, 4-piston-radial-caliper, Brembo Monobloc M50, with cornering-ABS Rear brake245 mm disc, 2-piston caliper with cornering-ABS
Weight [kg]168 Seat height [mm]830
ColoursTricolore Colours wheelsred
InstrumentsTFT Electric FeaturesDrivemodes, Powermodes, Kuven-ABS, DTC EVO, DQS, DTC EVO, DWC EVO, EBC, RbW, DDA+, DWC, EBC
Start of production2017
Cylinder2
Valves4
Coolingliquid
Strokes4
Displacement [ccm]1285
Bore [mm]116
Stroke [mm]60
Compression ratio13:1
Max. Power [kW/hp]154/209
RPM max. power [min-1]11000
Max. torque [Nm]142
RPM max. torque [min-1]9000
Fuelt treatmentMitsubishi electronic fuel injection, Twin-Injection, RbW, elliptical throttle body
EURO-norm4
Gears6
Ratio gears1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Front sprocket15
Rear sprocket39
ClutchWet clutch, hydraulic control
Wheelbase [mm]1443
Rake [°]24
Front suspensionÖhlins NIX30 43 mm USD-fork, elektronisch einstellbar, TiN
Front wheel travel [mm]120
Front wheel3-W-spokes light alloy, forged, 3.50 x 17
Front tyre120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspensionÖhlins TTX36, elektronisch einstellbar
Rear wheel travel [mm]130
Rear wheel3-W-spokes light alloy, forged, 6.00 x 17
Rear tyre200/55 ZR17 Pirelli Diablo Supercorsa SP
Front brake330 mm dual disc, 4-piston-radial-caliper, Brembo Monobloc M50, with cornering-ABS
Rear brake245 mm disc, 2-piston caliper with cornering-ABS
Weight [kg]168
Seat height [mm]830
ColoursTricolore
Colours wheelsred
InstrumentsTFT
Electric FeaturesDrivemodes, Powermodes, Kuven-ABS, DTC EVO, DQS, DTC EVO, DWC EVO, EBC, RbW, DDA+, DWC, EBC
