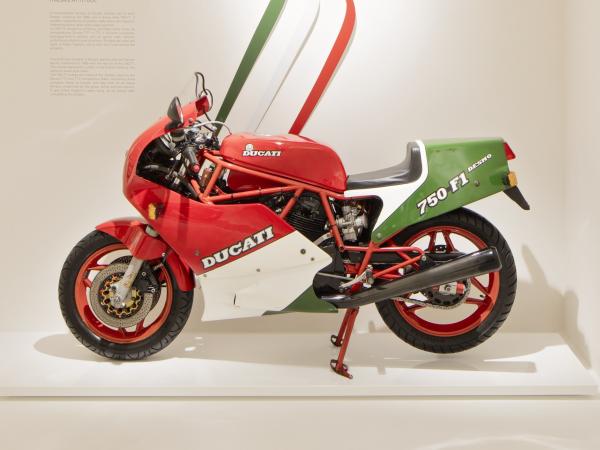

Ducati 750 F1

Responsive image Source: Ducati-Press

Technical data

Start of production1985 End of production1985
Displacement [ccm]748 Bore [mm]88
Stroke [mm]61.5 Compression ratio9.3:1
Fuelt treatmentDell'Orto PI-IF36A Wheelbase [mm]1400
Front suspension38 mm Mazocchi fork Front wheelMT 2,50x16
Front tyre120/80x16 Rear wheelMT 3,00x18
Rear tyre130/80x18 Front brake280 dual disc
Rear brake260 disc Weight [kg]175
Seat height [mm]750 Length [mm]2110
Width [mm]690 Max. speed [km/h]200
Coloursred, white and Grün Max. rpm9000
Opening angle intake valve29° b. TDC Closing angle intake valve90° a. BDC
Opening angle outlet valve70° a. BDC Closing angle outlet valve48° a. TDC
Start of production1985
End of production1985
Displacement [ccm]748
Bore [mm]88
Stroke [mm]61.5
Compression ratio9.3:1
Fuelt treatmentDell'Orto PI-IF36A
Wheelbase [mm]1400
Front suspension38 mm Mazocchi fork
Front wheelMT 2,50x16
Front tyre120/80x16
Rear wheelMT 3,00x18
Rear tyre130/80x18
Front brake280 dual disc
Rear brake260 disc
Weight [kg]175
Seat height [mm]750
Length [mm]2110
Width [mm]690
Max. speed [km/h]200
Coloursred, white and Grün
Max. rpm9000
Opening angle intake valve29° b. TDC
Closing angle intake valve90° a. BDC
Opening angle outlet valve70° a. BDC
Closing angle outlet valve48° a. TDC
