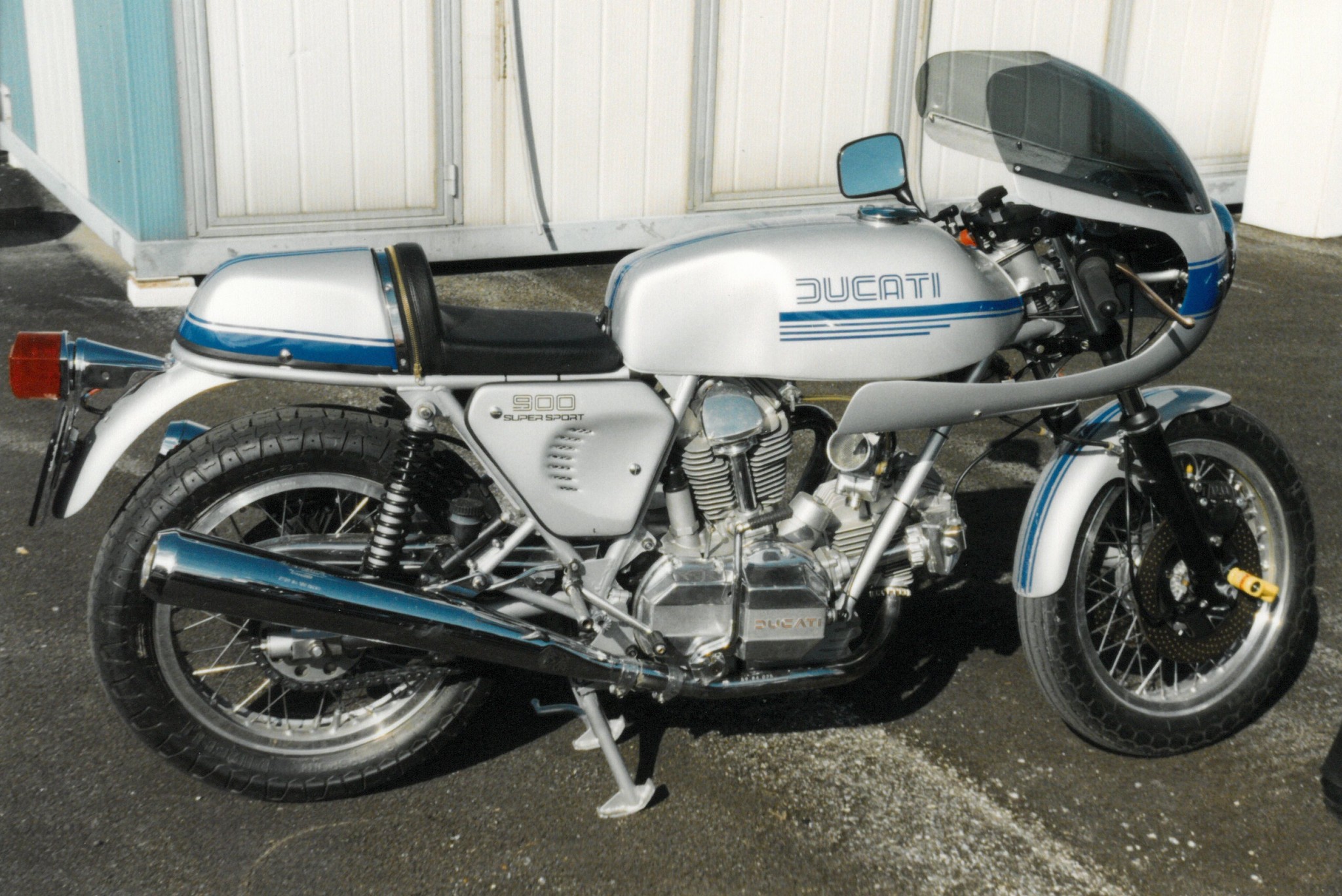

Ducati 900 Super Sport

Responsive image Source: Ducatista

Technical data

Start of production1978 CylinderV2 90°
Coolingair Strokes4
Displacement [ccm]864 Bore [mm]86
Stroke [mm]74.4 Compression ratio9.5:1
Max. Power [kW/hp]77/105 RPM max. power [min-1]8800
Fuelt treatmentDell'Orto PHM40A Fuelt treatment 2Dell'Orto PHF32A
Wheelbase [mm]1500 Front suspension38 mm Marzocchi-fork
Front wheelCampagnolo MT2.15 x 18 Front tyreMichelin 3.50x18
Rear wheelCampagnolo MT4.00 x 18 Rear tyreMichelin 4.00/5.60x18
Front brake280 mm dual disc Rear brake229 mm disc
Weight [kg]188 Seat height [mm]770
Length [mm]2220 Width [mm]675
Colourssilver and blue Max. rpm7900
Opening angle intake valve63° b. TDC Closing angle intake valve83° a. BDC
Opening angle outlet valve80° a. BDC Closing angle outlet valve58° a. TDC
Start of production1978
CylinderV2 90°
Coolingair
Strokes4
Displacement [ccm]864
Bore [mm]86
Stroke [mm]74.4
Compression ratio9.5:1
Max. Power [kW/hp]77/105
RPM max. power [min-1]8800
Fuelt treatmentDell'Orto PHM40A
Fuelt treatment 2Dell'Orto PHF32A
Wheelbase [mm]1500
Front suspension38 mm Marzocchi-fork
Front wheelCampagnolo MT2.15 x 18
Front tyreMichelin 3.50x18
Rear wheelCampagnolo MT4.00 x 18
Rear tyreMichelin 4.00/5.60x18
Front brake280 mm dual disc
Rear brake229 mm disc
Weight [kg]188
Seat height [mm]770
Length [mm]2220
Width [mm]675
Colourssilver and blue
Max. rpm7900
Opening angle intake valve63° b. TDC
Closing angle intake valve83° a. BDC
Opening angle outlet valve80° a. BDC
Closing angle outlet valve58° a. TDC
