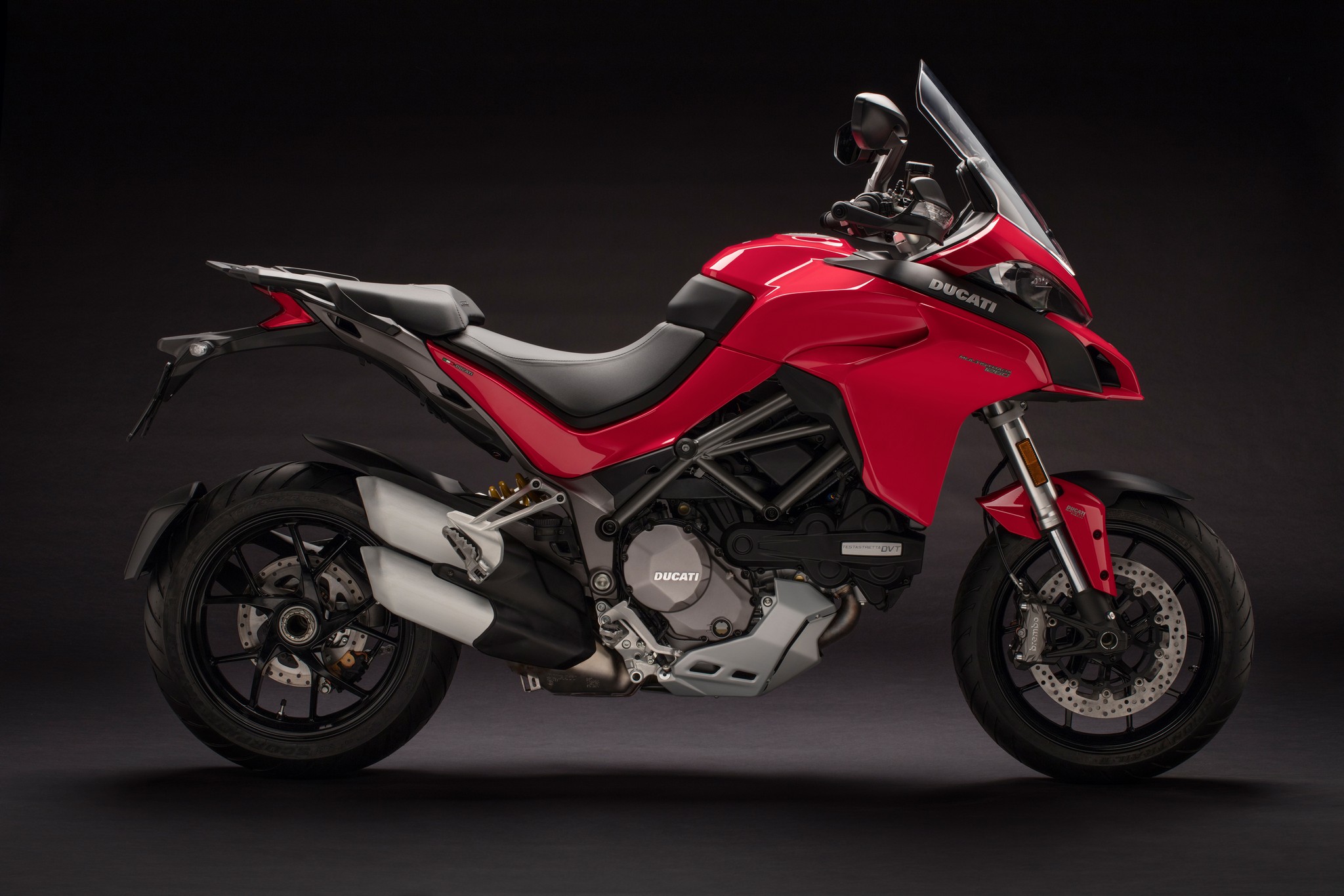

Ducati Multistrada 1260

Responsive image Source: Ducati-Press

Technical data

Start of production2018 CylinderV2 90°
Valves4 CoolingLiquid
Strokes4 Displacement [ccm]1262
Bore [mm]106 Stroke [mm]71
Compression ratio13:1 Max. Power [kW/hp]116/158
RPM max. power [min-1]9500 Max. torque [Nm]129
RPM max. torque [min-1]7500 Fuelt treatmentBosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
EURO-norm4 Gears6
Ratio gears1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25 Front sprocket15
Rear sprocket40 ClutchWet clutch, hydraulic control
Wheelbase [mm]1585 Rake [°]25
Front suspension48 mm fully adjustable usd forks Front wheel travel [mm]170
Front wheel5-spoke Y-shape cast light alloy 3.50 x 17 Front tyre120/70 R17 Pirelli Scorpion Trail II
Rear suspensionFully adjustable Sachs monoshock unit. Remote spring preload adjustment. aluminum single-sided swingarm Rear wheel travel [mm]170
Rear wheel5-spoke Y-shaped cast light alloy 6.00 x 17 Rear tyrePirelli Scorpion Trail II 190/55 R17
Front brake2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment Rear brake265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Weight [kg]209 Seat height [mm]825-845
InstrumentsTFT Electric FeaturesVHC, Ridemodes, Powermodes, Cornering ABS-ABS, DTC, DWC, DQS, DMS
Start of production2018
CylinderV2 90°
Valves4
CoolingLiquid
Strokes4
Displacement [ccm]1262
Bore [mm]106
Stroke [mm]71
Compression ratio13:1
Max. Power [kW/hp]116/158
RPM max. power [min-1]9500
Max. torque [Nm]129
RPM max. torque [min-1]7500
Fuelt treatmentBosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
EURO-norm4
Gears6
Ratio gears1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Front sprocket15
Rear sprocket40
ClutchWet clutch, hydraulic control
Wheelbase [mm]1585
Rake [°]25
Front suspension48 mm fully adjustable usd forks
Front wheel travel [mm]170
Front wheel5-spoke Y-shape cast light alloy 3.50 x 17
Front tyre120/70 R17 Pirelli Scorpion Trail II
Rear suspensionFully adjustable Sachs monoshock unit. Remote spring preload adjustment. aluminum single-sided swingarm
Rear wheel travel [mm]170
Rear wheel5-spoke Y-shaped cast light alloy 6.00 x 17
Rear tyrePirelli Scorpion Trail II 190/55 R17
Front brake2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment
Rear brake265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Weight [kg]209
Seat height [mm]825-845
InstrumentsTFT
Electric FeaturesVHC, Ridemodes, Powermodes, Cornering ABS-ABS, DTC, DWC, DQS, DMS

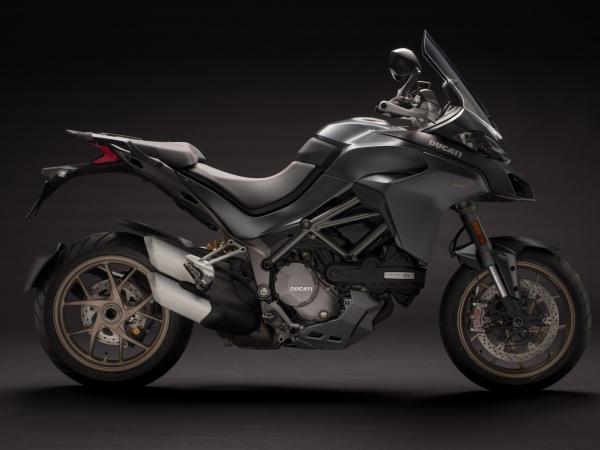

Galery

Speed-torque characteristic
