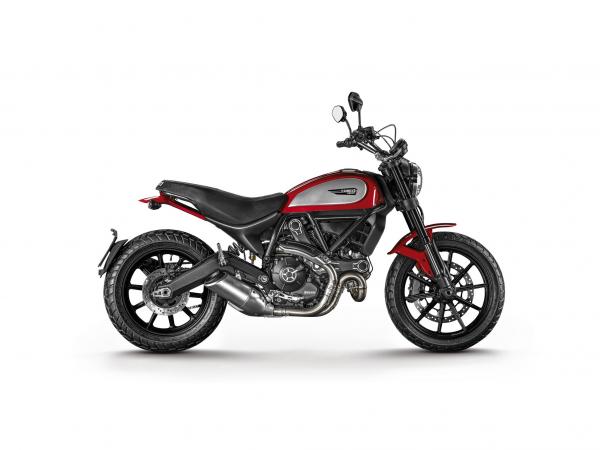

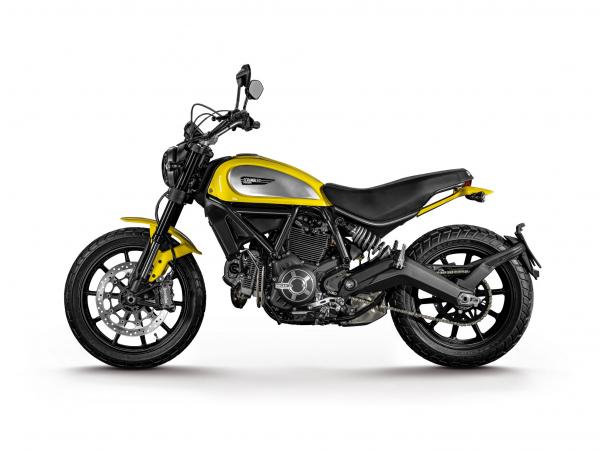

Ducati Scrambler Icon

Responsive image Source: Ducati-Press

Technical data

Start of production2017 Cylinder2
Valves4 Coolingair
Strokes4 Displacement [ccm]803
Bore [mm]88 Stroke [mm]66
Compression ratio11:1 Max. Power [kW/hp]55/75
RPM max. power [min-1]8250 Max. torque [Nm]68
RPM max. torque [min-1]7750 Fuelt treatmentelectronic fuel injection, 50 mm throttle body
EURO-norm3 Gears6
Ratio gears1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26 Front sprocket15
Rear sprocket46 ClutchWet clutch, mechanical control
Wheelbase [mm]1445 Rake [°]24
Steering lock [°] left/right35 Front suspensionKayaba 41 mm USD-fork
Front wheel travel [mm]150 Front wheel10-spokes light alloy, 3.00 x 18
Front tyre110/80 R18 Pirelli MT 60 RS Rear suspensionKayaba
Rear wheel travel [mm]150 Rear wheel10-spokes light alloy, 5.50 x 17
Rear tyre180/55 R17 Pirelli MT 60 RS Front brake330 mm disc, 4-piston-radial-caliper with ABS
Rear brake245 mm disc, 1-piston-caliper with ABS Weight [kg]170
Seat height [mm]790 Length [mm]2165
InstrumentsLCD
Start of production2017
Cylinder2
Valves4
Coolingair
Strokes4
Displacement [ccm]803
Bore [mm]88
Stroke [mm]66
Compression ratio11:1
Max. Power [kW/hp]55/75
RPM max. power [min-1]8250
Max. torque [Nm]68
RPM max. torque [min-1]7750
Fuelt treatmentelectronic fuel injection, 50 mm throttle body
EURO-norm3
Gears6
Ratio gears1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Front sprocket15
Rear sprocket46
ClutchWet clutch, mechanical control
Wheelbase [mm]1445
Rake [°]24
Steering lock [°] left/right35
Front suspensionKayaba 41 mm USD-fork
Front wheel travel [mm]150
Front wheel10-spokes light alloy, 3.00 x 18
Front tyre110/80 R18 Pirelli MT 60 RS
Rear suspensionKayaba
Rear wheel travel [mm]150
Rear wheel10-spokes light alloy, 5.50 x 17
Rear tyre180/55 R17 Pirelli MT 60 RS
Front brake330 mm disc, 4-piston-radial-caliper with ABS
Rear brake245 mm disc, 1-piston-caliper with ABS
Weight [kg]170
Seat height [mm]790
Length [mm]2165
InstrumentsLCD
