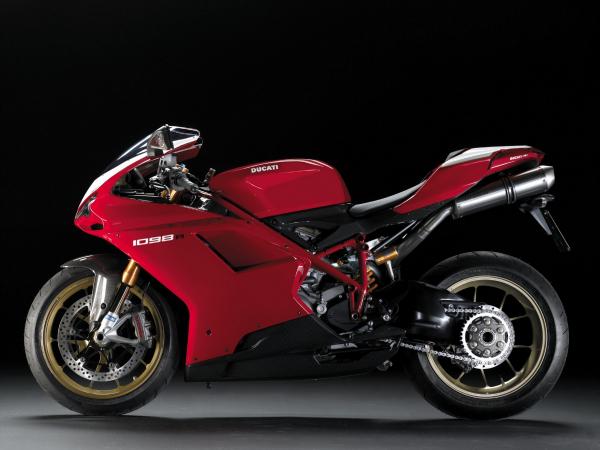

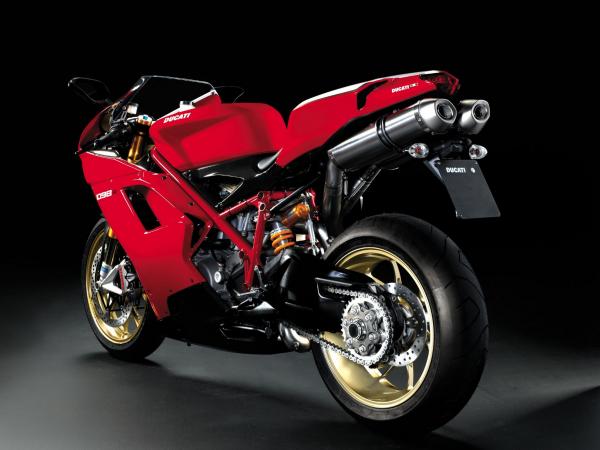

Ducati 1098 R

Responsive image Source: Ducati-Press

Technical data

Start of production2008 End of production2009
Cylinder2 Coolingliquid
Strokes4 Displacement [ccm]1198
Bore [mm]106 Stroke [mm]67
Compression ratio12.8:1 Max. Power [kW/hp]132/180
RPM max. power [min-1]9750 Max. torque [Nm]134
RPM max. torque [min-1]7750 Fuelt treatmentMarelli electronic fuel injection, 63,9 mm elliptical throttle body
EURO-norm3 Gears6
Front suspensionÖhlins 43 mm USD-fork, fully adjustable Rear suspensionÖhlins TTXR
Front brake330 mm dual disc, 4-piston-Brembo-caliper Weight [kg]165
Start of production2008
End of production2009
Cylinder2
Coolingliquid
Strokes4
Displacement [ccm]1198
Bore [mm]106
Stroke [mm]67
Compression ratio12.8:1
Max. Power [kW/hp]132/180
RPM max. power [min-1]9750
Max. torque [Nm]134
RPM max. torque [min-1]7750
Fuelt treatmentMarelli electronic fuel injection, 63,9 mm elliptical throttle body
EURO-norm3
Gears6
Front suspensionÖhlins 43 mm USD-fork, fully adjustable
Rear suspensionÖhlins TTXR
Front brake330 mm dual disc, 4-piston-Brembo-caliper
Weight [kg]165
